Introduction

GE Bently

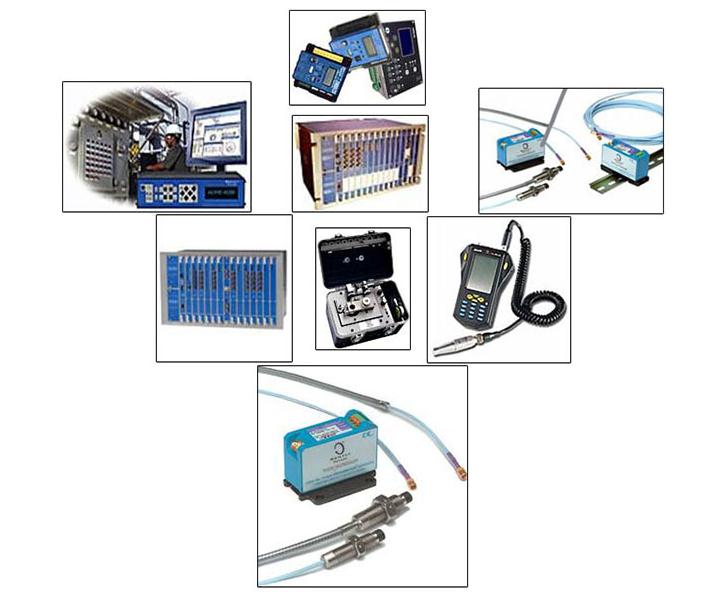

Asset Monitoring System  Testing & Calibration Equipment Wireless and Portable    Sensors and Transducers

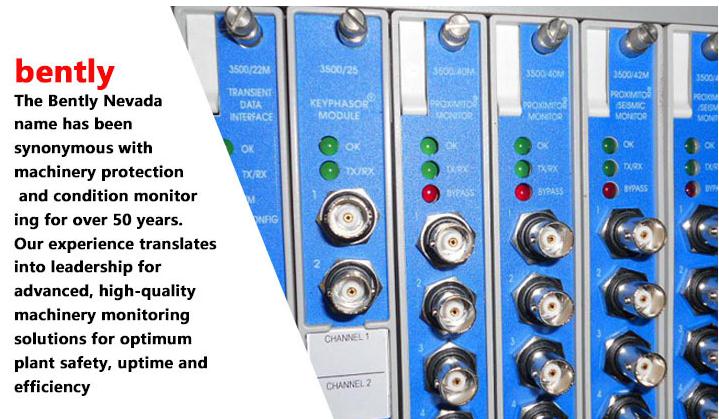

The Bently Nevada name has been synonymous with machinery protection and condition monitoring for over 50 years. Our experience translates into leadership for advanced, high-quality machinery monitoring solutions for optimum plant safety, uptime and efficiency.


  • Monitoring Systems
  • Wireless & Portable Condition Monitoring
  • Test and Calibration Equipment
  • Sensors and Transducers


  • GE Bently 3300 XL 8mm Proximity Transducer System


    GE Bently 3300 XL 8mm Proximity Transducer System

    The 3300 XL 8 mm Proximity Transducer System consists of:

    3300 XL 8 mm probe,
    3300 XL extension cable,
    3300 XL Proximitor® Sensor.
    The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor® reference and speed measurements.



    GE Bently 33300 XL 11mm Proximity Transducer System


    GE Bently 3300 XL 8mm Proximity Transducer System

    The 3300 XL 11 mm Proximity Transducer System consists of:

    3300 XL 11 mm probe 3300 XL 11 mm extension cable 3300 XL 11 mm Proximitor® Sensor

    The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.


    Read more...

    GE Bently 3300 XL 25 mm Proximity Transducer System


    GE Bently 3300 XL 25 mm Proximity Transducer System

    The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20mV/mil) output gives this system a linear range of 12.7 mm (500 mils).

    Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on mid-size to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).



    Read more...

    GE Bently 3300 XL Ceramic Capped Probe


    GE Bently 3300 XL Ceramic Capped Probe

    Ceramic capped probes have long been used in harsh machine environments because of their ability to withstand a variety of destructive chemical and usage applications. If severe environments have prevented you from monitoring your machinery assets correctly, our line of ceramic capped probes may be just the solution you've been waiting for.

    The 3300 XL Ceramic Capped Probe is a state-of-the-art solution for monitoring machinery in aggressive chemical or high-pressure environments. The alumina cap and 304 stainless steel probe case provide robust protection and increased life for applications in anhydrous ammonia or other extreme pH environments. The ceramic capped probe is compatible with the 3300 XL Proximitor® Sensor and extension cable.
